ONE PLUS 8 Specifications

Updated: May 13



Dimensions



  • Height:160.2 mm

  • Width:72.9 mm

  • Thickness:8.0 mm

  • Weight:180g


Display


Parameters
  • Size: 6.55 inches(The corners of the screen are within a standard rectangle. Measured diagonally, the screen size is 6.55 inches in the full rectangle and 6.34 inches accounting for the rounded corners.)

  • Resolution: 2400 x 1080 pixels 402 ppi

  • Aspect Ratio: 20:9

  • Type: Fluid AMOLED

  • Support sRGB, Display P3

  • Cover Glass: 3D Corning® Gorilla® Glass

Features
  • Reading Mode

  • Night Mode

  • Vibrant Color Effect


Performance


  • Operating System: OxygenOS based on Android™ 10

  • CPU: Qualcomm® Snapdragon™865

  • 5G Chipset: X55

  • GPU: Adreno 650

  • RAM: 8GB/12GB LPDDR4X

  • Storage: 128GB/256GB UFS 3.0 2-LANE

  • Battery: 4300 mAh (non-removable)

  • Warp Charge 30T Fast Charging (5V/6A)

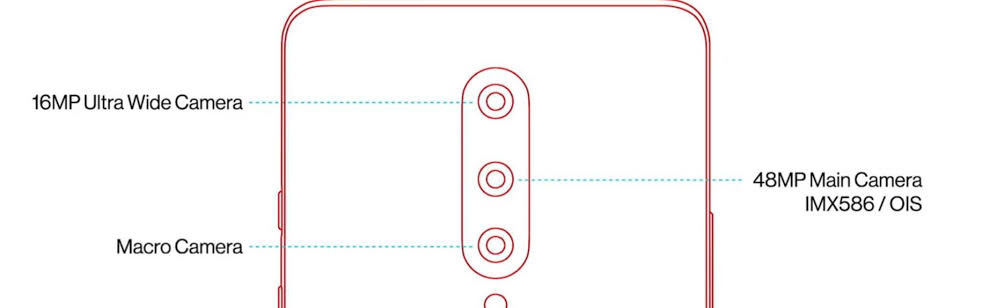

Camera



Rear camera - Main
  • Sensor: Sony IMX586

  • Megapixels: 48

  • Pixel Size: 0.8µm

  • Lens Quantity: 6P

  • OIS: Yes

  • EIS: Yes

  • InAperture: f/1.75

Macro Lens
  • Megapixels: 2

  • Pixel Size: 1.75µm

  • Aperture: f/2.4

Ultra Wide Angle Lens
  • Megapixels: 16

  • Aperture: f/2.2

  • Field of View: 116°

Flash
  • Dual LED Flash

Optical Zoom
  • No(Support in sensor zoom 2X)

Autofocus
  • Multi Autofocus (PDAF+CAF)

Video
  • 4K video at 30/60 fps

  • 1080P video at 30/60 fps

  • Super Slow Motion: 1080p video at 240 fps, 720p video at 480 fps

  • Time-Lapse 1080P 30fps, 4k 30fps

  • Video Editor

Features
  • CINE aspect ratio video recording, UltraShot HDR, Nightscape, Micro , Portrait, Pro Mode, Panorama, Cat&dog face detection&focus, AI Scene Detection, RAW Image

Front Camera

  • Sensor: Sony IMX471

  • Megapixels: 16

  • Pixel Size: 1.0 µm

  • EIS: Yes

  • Autofocus: Fixed Focus

  • Aperture: f/2.45

Video
  • 1080P video at 30fps

  • Time-Lapse

Features
  • Face Unlock, HDR, Screen Flash, Face Retouching


Connectivity

LTE/LTE-A
  • 4×4 MIMO, Supports up to DL Cat 18/UL Cat 13(1.2Gbps /150Mbps), depending on carrier support

Band
  • GSM:GSM850、GSM900、GSM1800、GSM1900

  • WCDMA:B1、B2、B4、B5、B8、B9、B19

  • CDMA:BC0

  • LTE-FDD:B1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 32, 66

  • LTE-TDD:B34, 38, 39, 40, 41, 42, 46

  • 5G:n1, n3, n7, n28, n78

  • MIMO:LTE:B1, 3, 7, 38, 40, 41 NR: n1, n3, n7, n78

  • (Note:Actual network and frequency band usage depends on local operator deployment. N1, 3,7,28 will be supported later through upgrades)

Wi-Fi
  • IEEE 802.11 a/b/g/n/ac/ax, 2.4G+5G, 2x2 MIMO

Bluetooth
  • Bluetooth 5.1, support aptX & aptX HD & LDAC & AAC & SBC

NFC
  • NFC enabled

Positioning
  • GPS (L1+L5 Dual Band), GLONASS, Galileo (E1+E5a Dual Band), Beidou, A-GPS

Check carrier compatibility


Sensors

  • In-display Fingerprint Sensor

  • Accelerometer

  • Electronic Compass

  • Gyroscope

  • Ambient Light Sensor

  • Proximity Sensor

  • Sensor Core

Ports

  • USB 3.1 GEN1

  • Type-C

  • Support standard Type-C earphone

  • Dual nano-SIM slot

Buttons

  • Gestures and on-screen navigation support

  • Alert Slider

Audio

  • Dual Stereo Speakers

  • Noise cancellation support

  • Dolby Atmos®

Multimedia

Audio Supported Formats
  • Playback: MP3, AAC, AAC+, WMA, AMR-NB, AMR-WB, WAV, FLAC, APE, OGG, MID, M4A, IMY, AC3, EAC3, EAC3-JOC, AC4

  • Recording: WAV, AAC, AMR

Video Supported Formats
  • Playback: MKV, MOV, MP4, H.265(HEVC), AVI, WMV, TS, 3GP, FLV, WEBM

  • Recording: MP4

Image Supported Formats
  • Playback: JPEG, PNG, BMP, GIF, WEB, HEIF, HEIC, RAW

  • Output: JPEG, DNG

In The Box

  • OnePlus 8

  • Warp Charge 30 Power Adapter

  • Warp Type-C Cable (Support USB 2.0)

  • Quick Start Guide

  • Welcome Letter

  • Safety Information and Warranty Card

  • LOGO Sticker

  • Case

  • Screen Protector

  • SIM Tray Ejector
